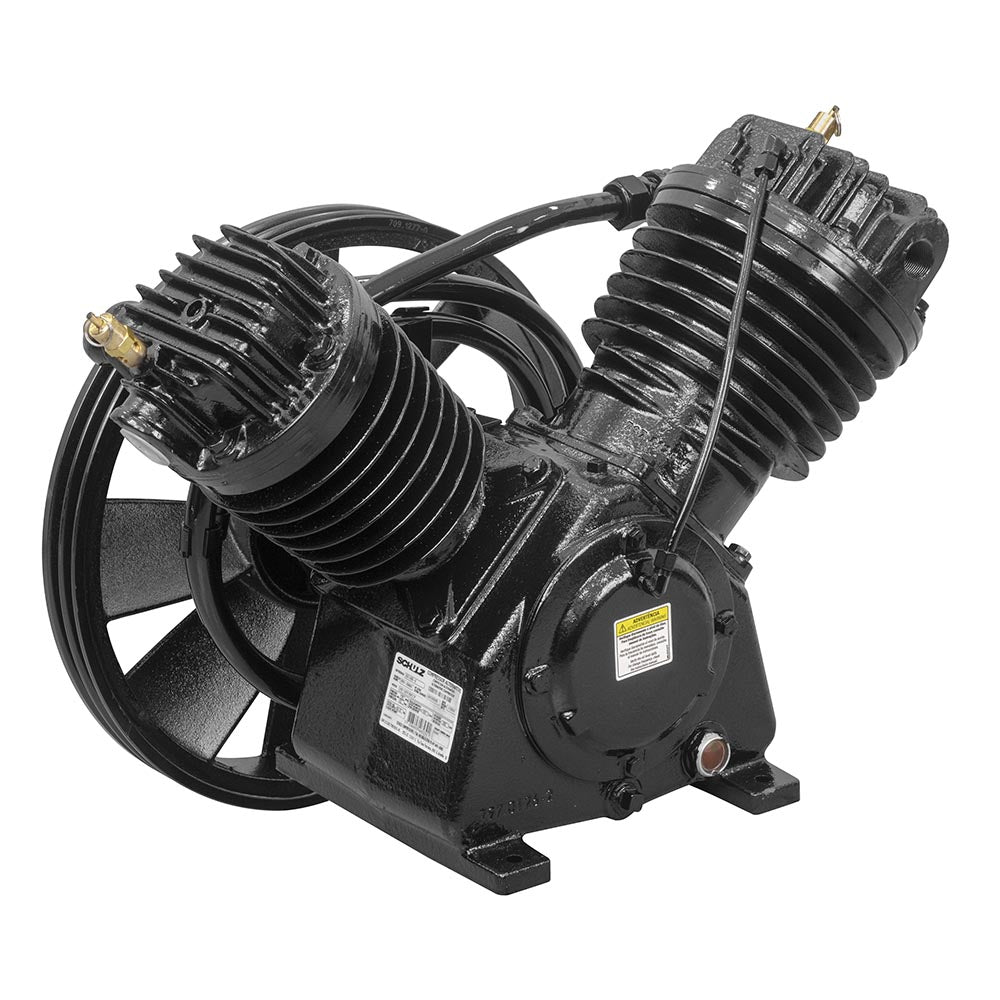

The MSV 30 Max lubricated compressor pumps of Schulz are versatile and strong. With slotted mounting feet, they can be easily used for assembly on air tanks or as replacement pumps for competitive brands. Produced in cast iron, they ensure reliability and durability for professional and industrial applications. Pumps are available with flows of 5.2 to 80 cfm (cubic feet/min). To facilitate assembly, pumps are supplied with flywheel and metal intake silencers.

• Air displacement (CFM): 300
• Motor HP: 7.5HP
• Motor Power (KW): 5.5
• Maximum operating pressure (bar): 9.7
• Maximum operating pressure (PSI): 175
• Compressor Unit - No. Stages: 2-stage
• Compressor Unit - No. Pistons: 2
• RPM: 960
• Reversible head, right or left discharge.
• Solid cast iron construction
• Splash oil lubricated pump
• CNC machined.
• ISO 9002 compliant
• Large stainless steel reed valves
• Code: 933.1405-0
